Pekka Haimi

HELECTRIC BOARD - HELSINKI ELECTRIC LONGBOARD PROJECT

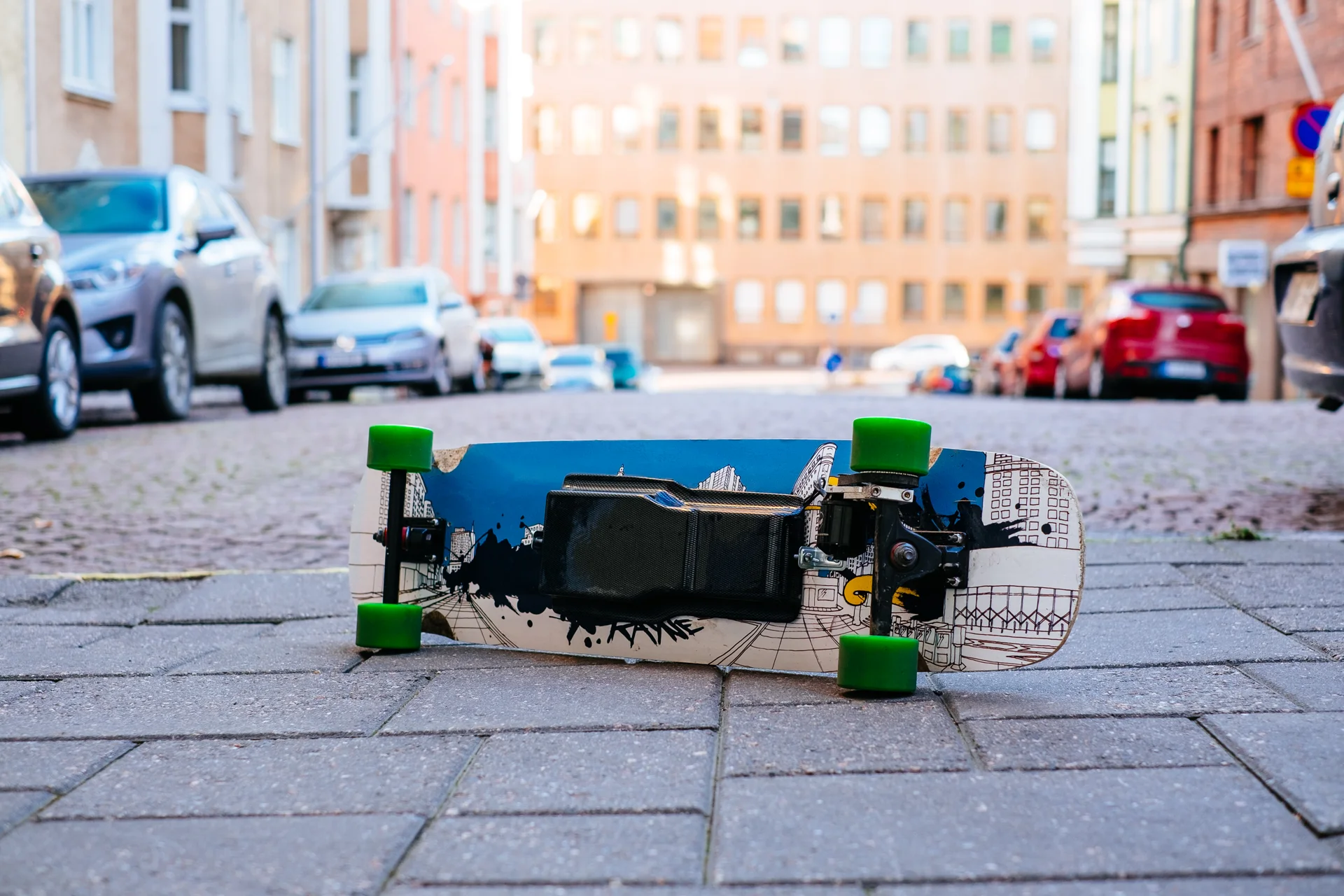

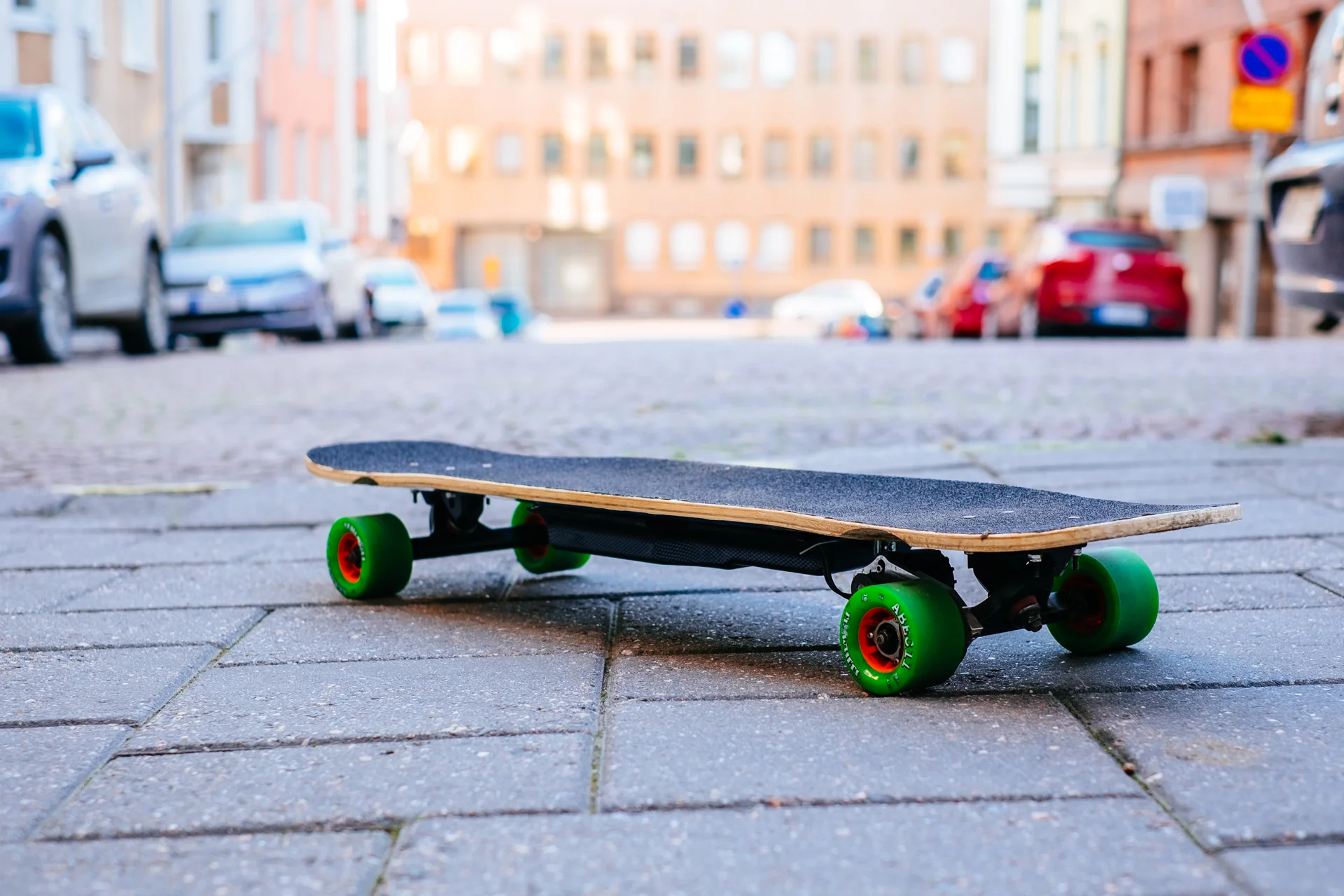

Board at its natural habitat

General information

Cruising speed: 20-25km/h

Range with full charge: 15-20km

Total weight: about 8kg

Price of the drivetrain and power-kit: About 500 euros

Board

Deck: Rayne Whip 41" ( www.boardsport.fi )

Trucks: Caliber II Fifty ( www.boardsport.fi )

Wheels: ABEC11 Flywheel 76mm 78a  ( www.boardsport.fi )

Drivetrain

Alien Drive Systems Single 5065 motor drive kit

Power

Motor: APS 5065 Outrunner brushless 270KV 22000W

ESC: APS 120A 2-7S Mini ESC (incl. BEC)

Battery: APS 6S 6300mah 35C

Controller

Electronics: HK-GT2B

New case: 3D-printed BadWolf V2, printed at Playful Pixels hub (Espoo, Finland)

light electric vehicles legislation in finland

Information about the new electric vehicle legislation in Finland.

https://www.eduskunta.fi/FI/vaski/HallituksenEsitys/Sivut/HE_24+2015.aspx

http://www.lvm.fi/tiedote/4445213/kevyista-sahkoajoneuvoista-laillisia-tieliikenteessa

http://www.trafi.fi/filebank/a/1441713964/83df44fe17b9867fd8b234cf7aeff777/18483-Trafin_julkaisuja_7-2015_-_Kevyet_sahkokayttoiset_liikkumisvalineet_jalankulku-_ja_pyorateille.pdf



Next step - Creating racing-class e-board

If you are interested in supporting or sponsoring the project, don't hesitate to contact via the contact form down below.



Interested in project? Feel free to contact me

Contact form:

Name *
Name

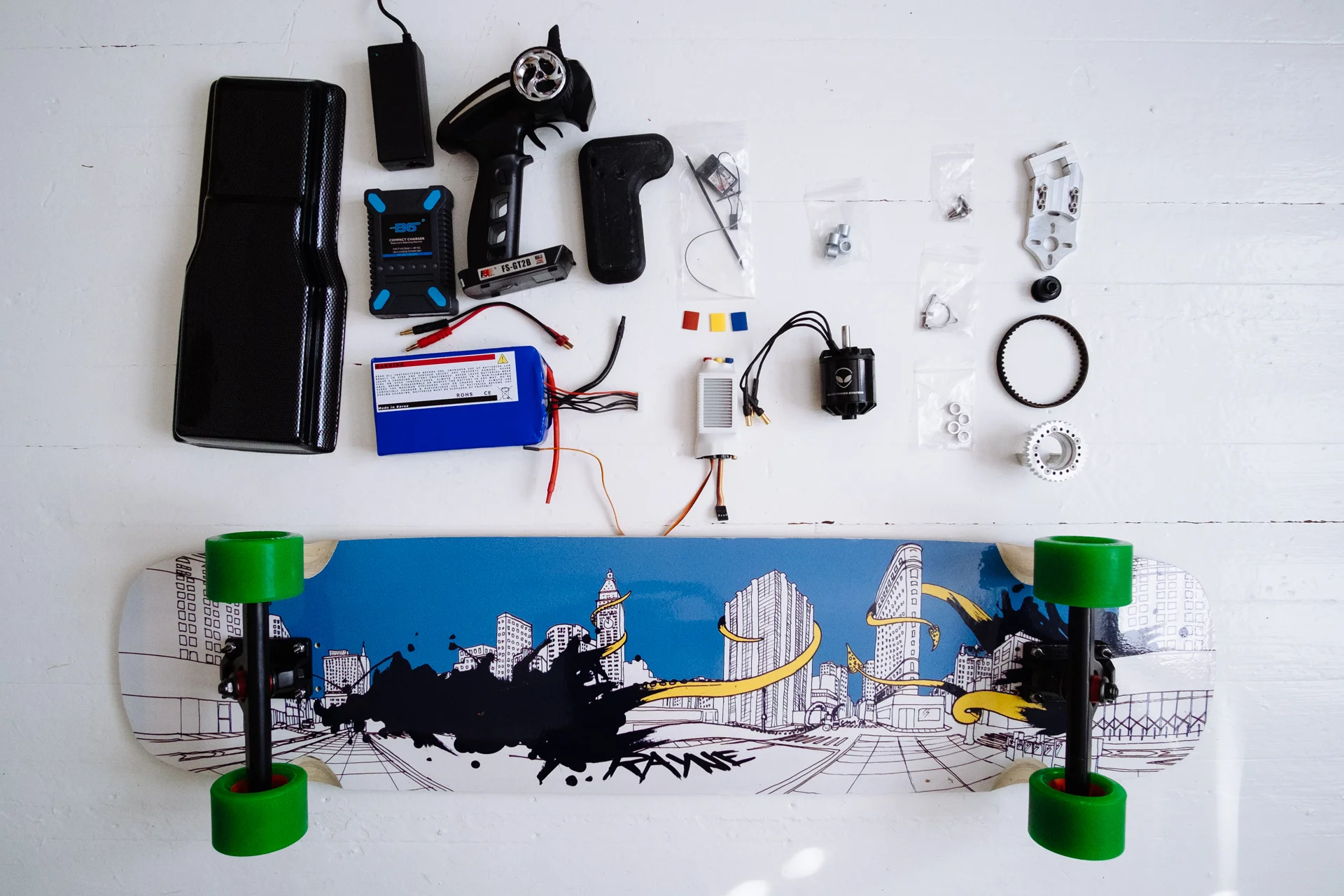

All the ingredients

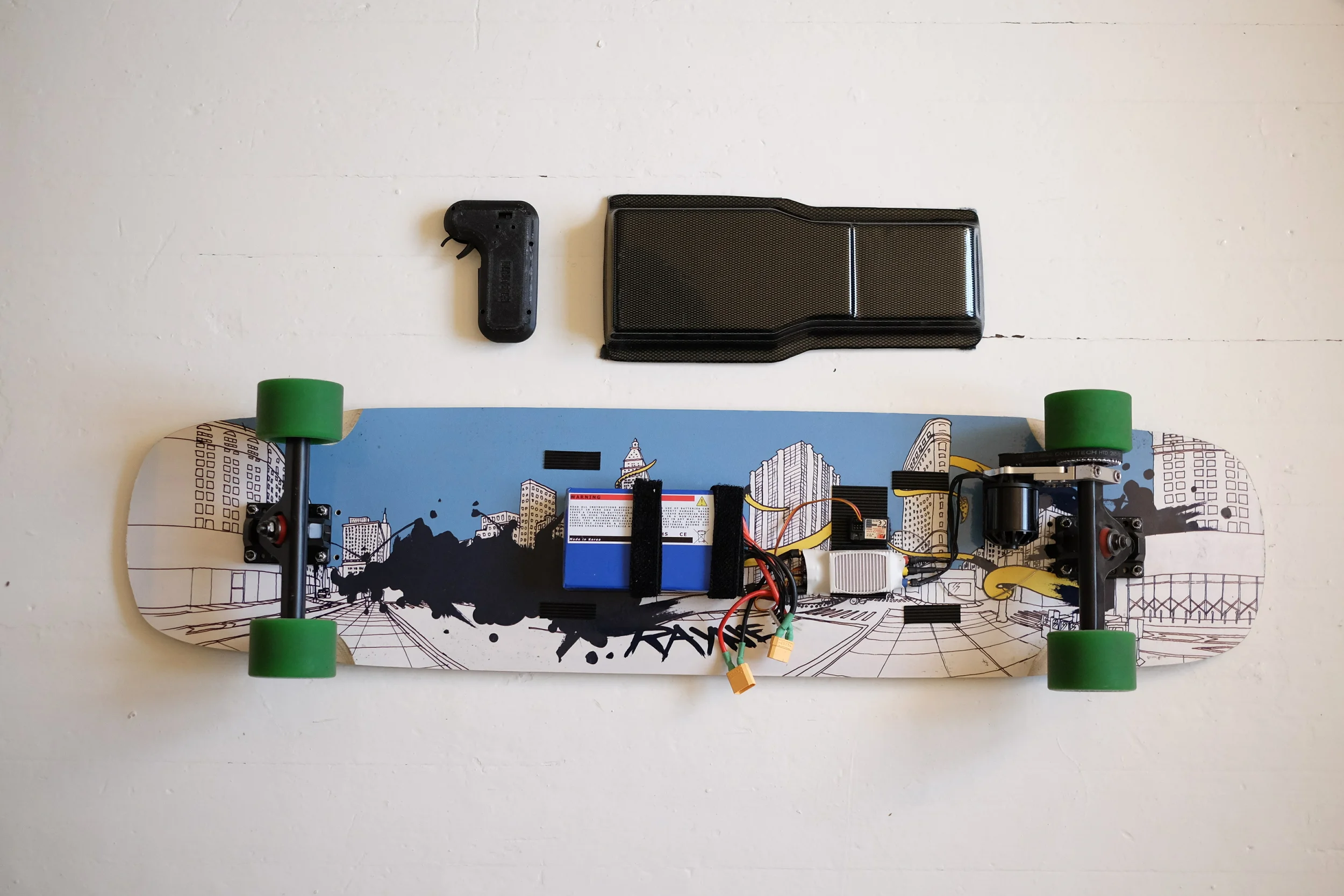

Complete board, Modded controller and enclosure.

Alien Drive-kit

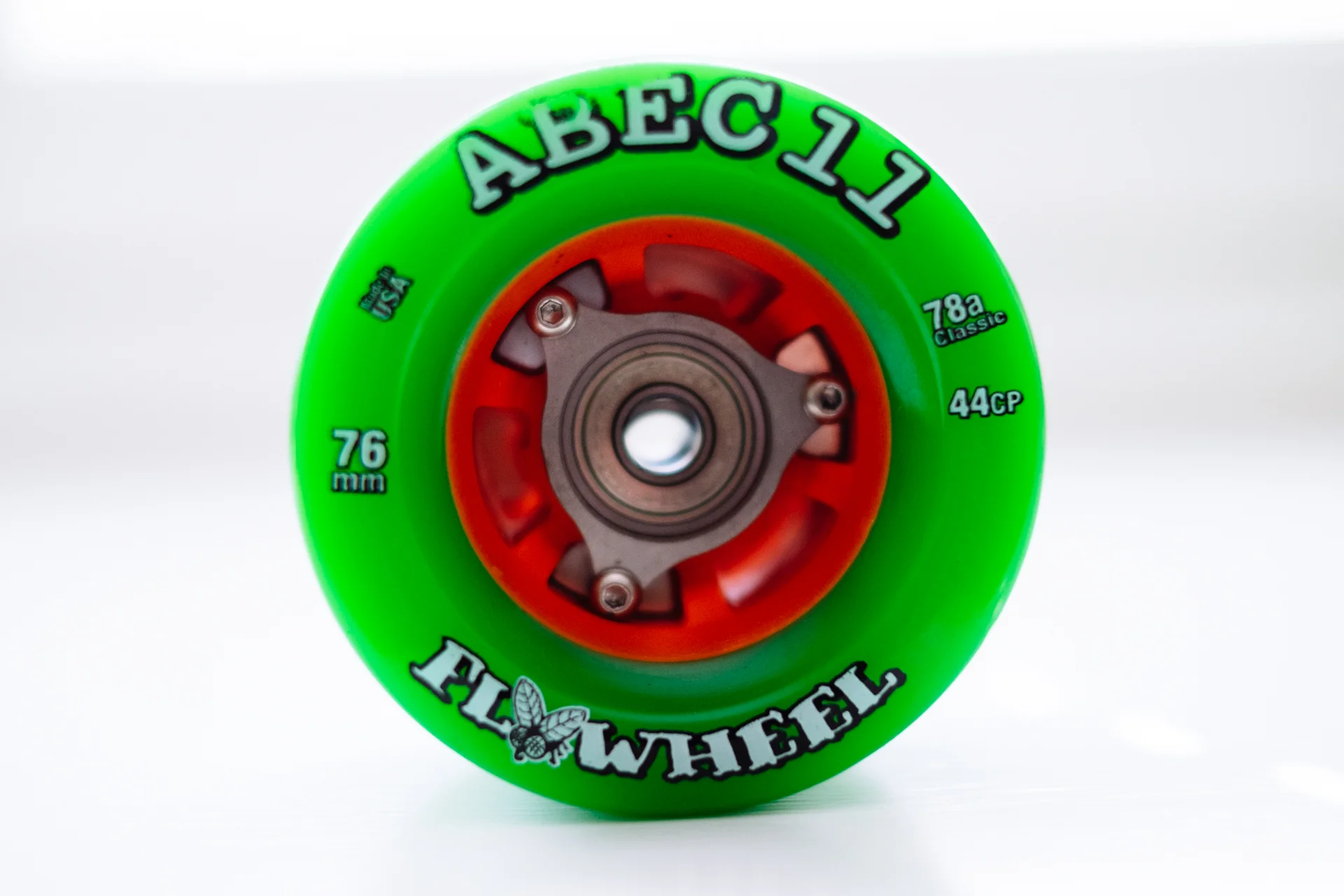

ABEC11 FLYWHEEL 78a 76mm

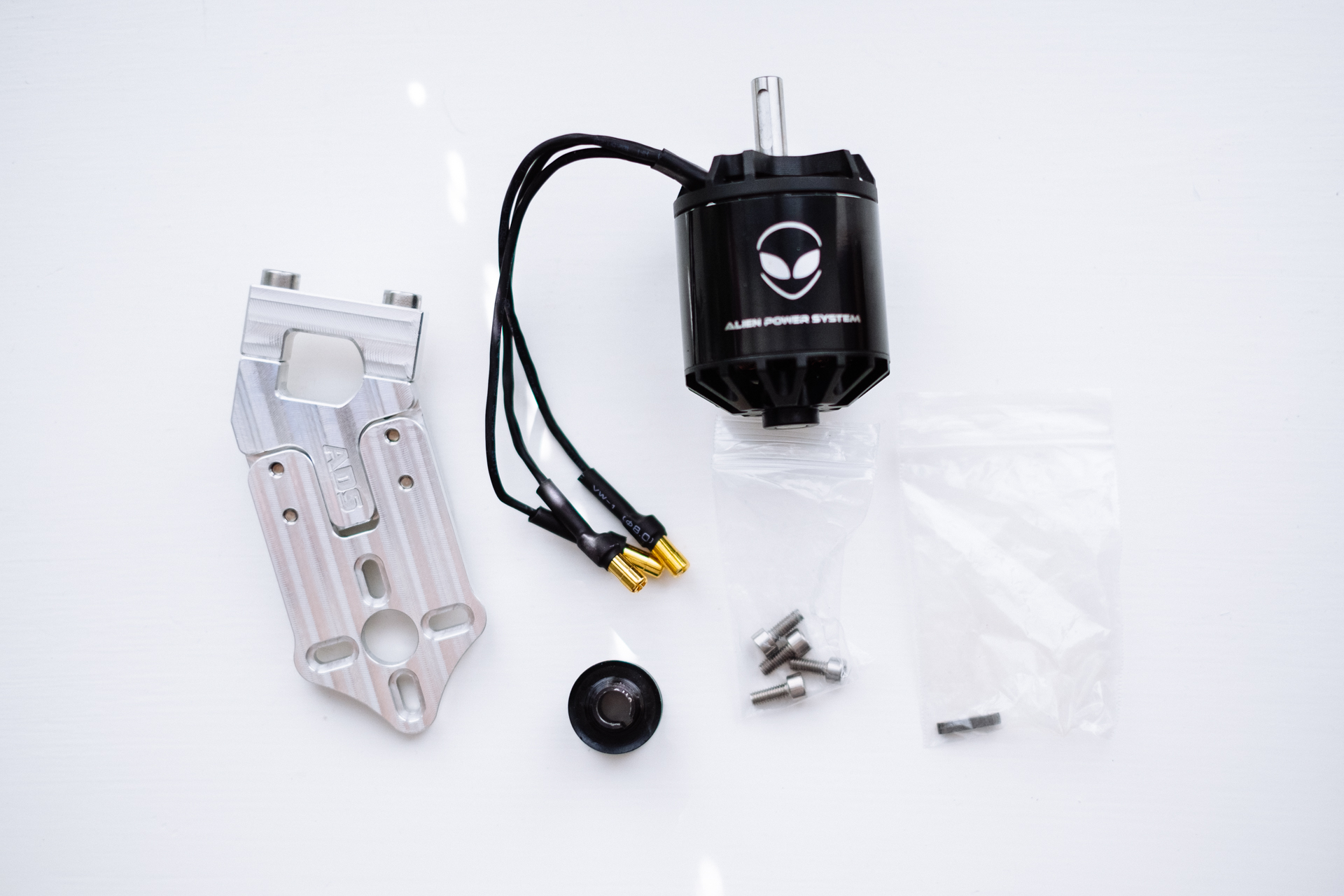

Alien Drive System motor mount for Caliber trucks and Alien Power System 2,2kw motor

Tags: Sähköskeitti, sähkölongboard, electronic skateboard, electronic longboard, helsinki, sähköpotkulauta, sähköpyörä,
